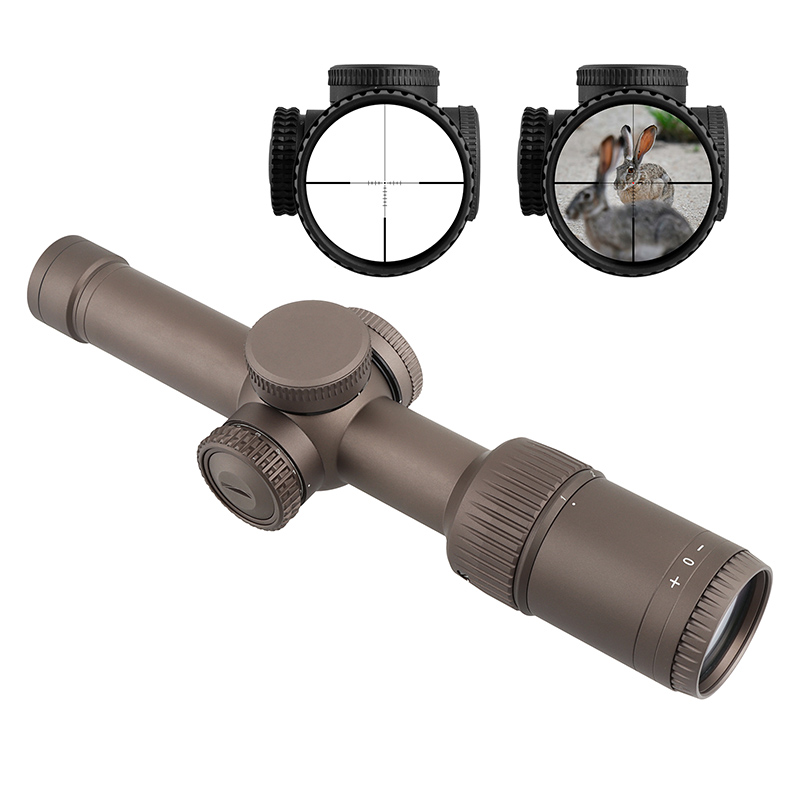

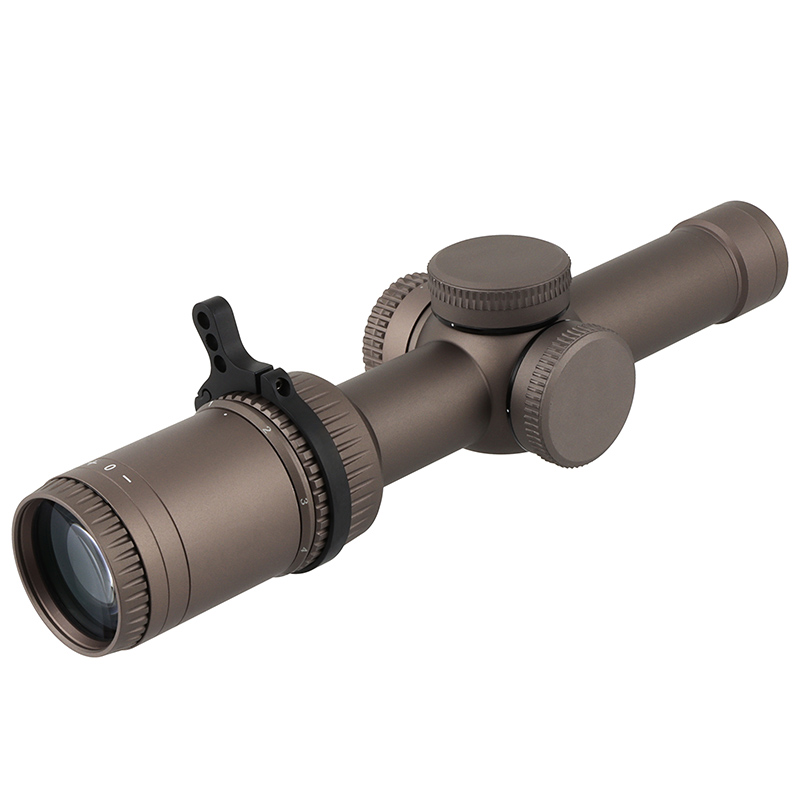

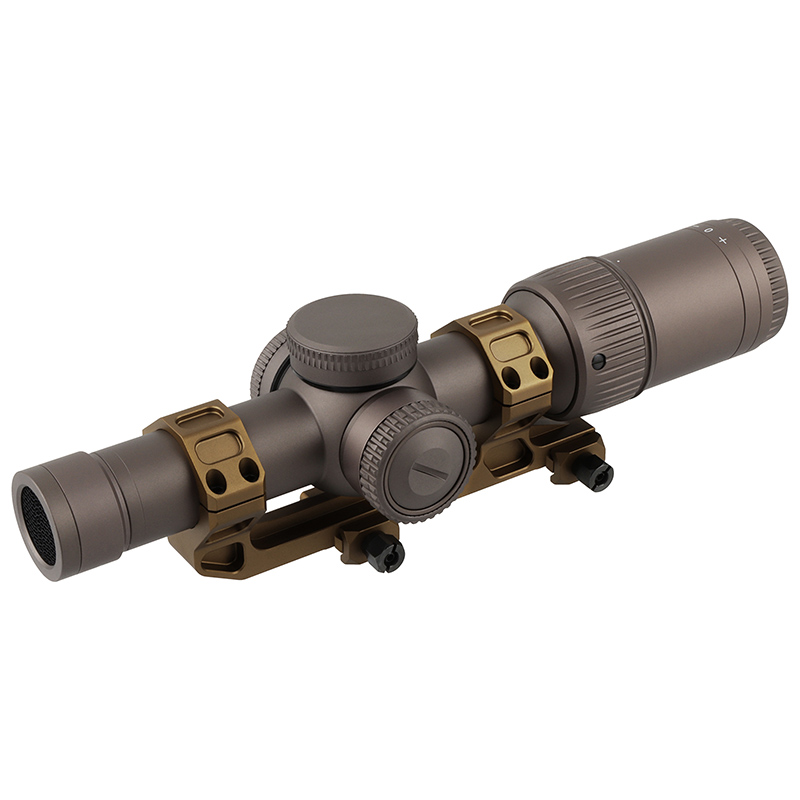

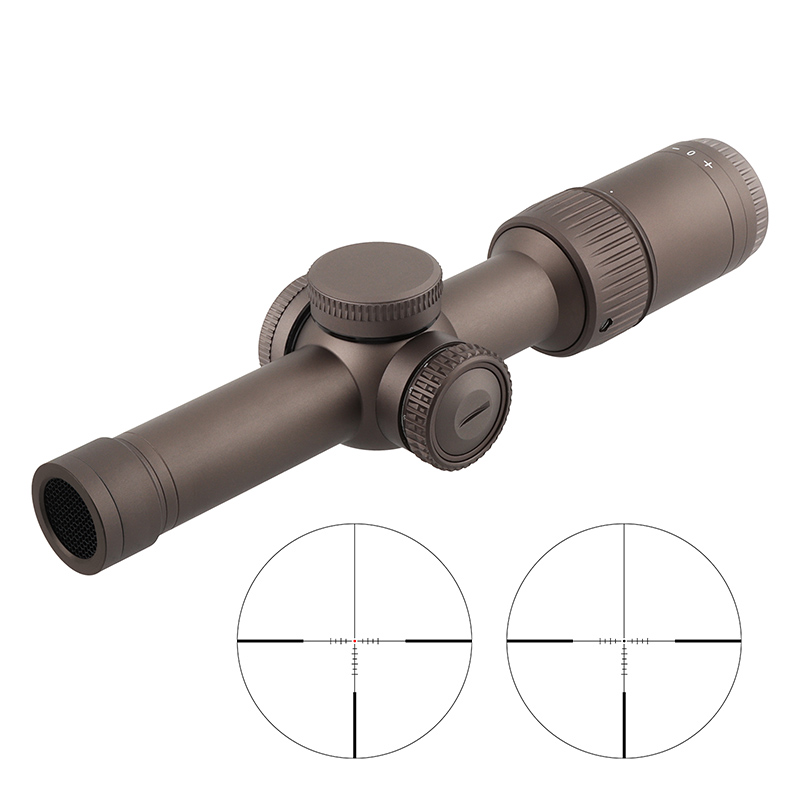

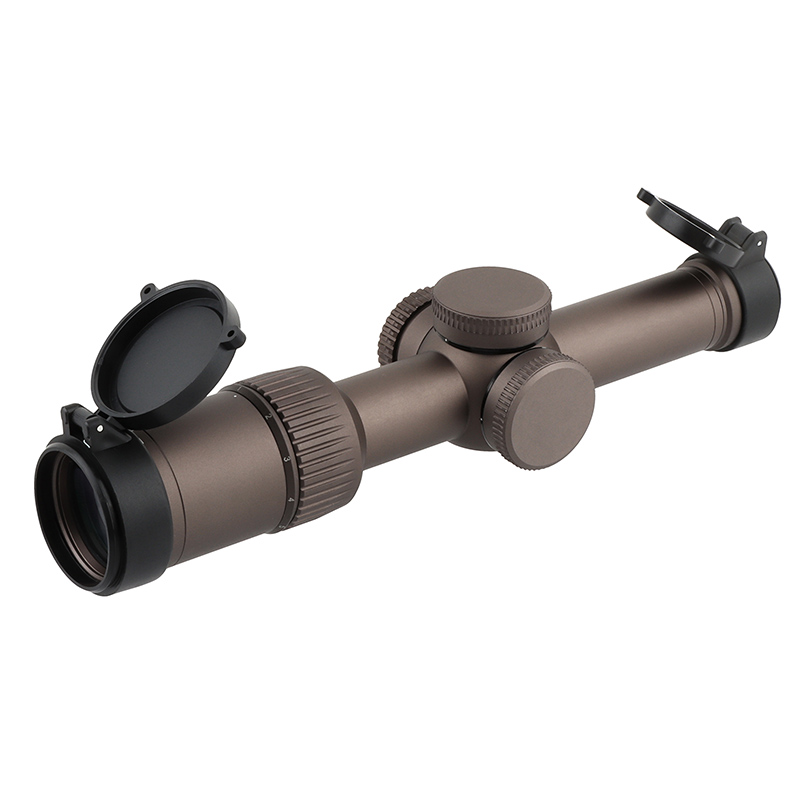

1-6X24E RIFLE SCOPE
Magnification Low:1
Magnification High:6
Objective diameter:24
Maintube diameter:30
Eyepiece Field of view:20
Diopter range +/-: 2
Exit Pupil Distance (mm):96

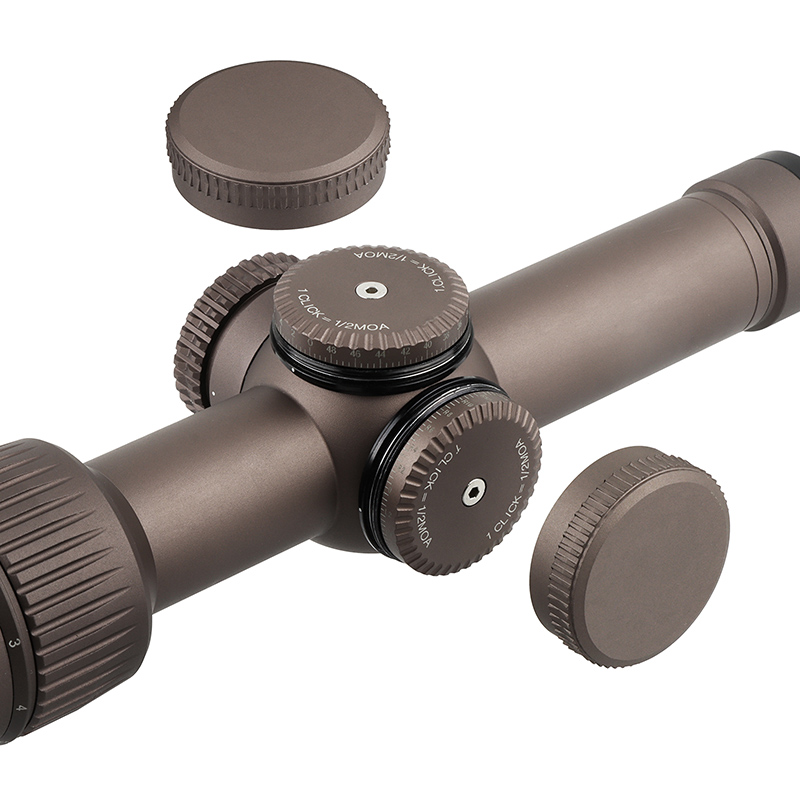

Total travel elevation (@ 100 yds) (MOA):100
Total travel windage (@ 100 yds) (MOA):100
Parallax Compensation:100yds

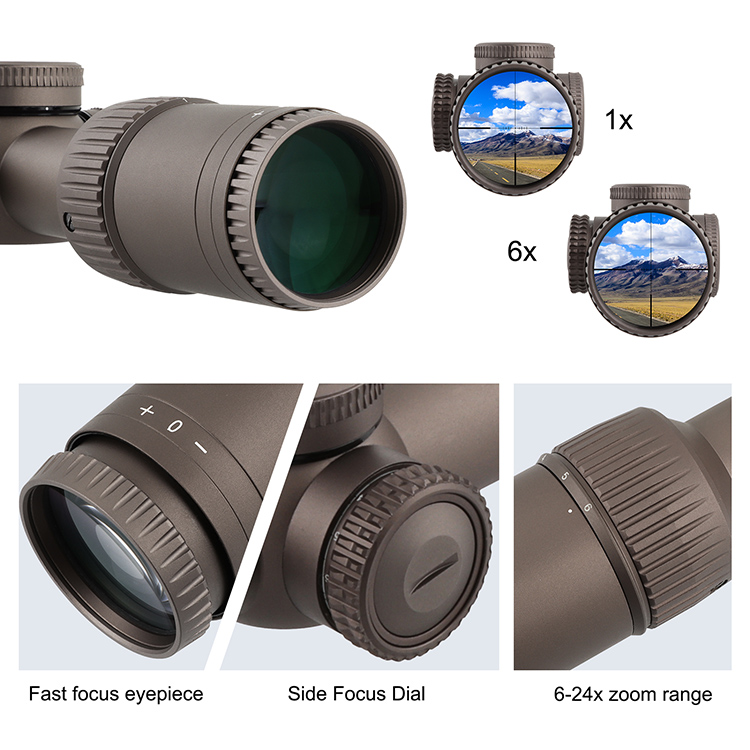

Fast focus eyepiece:yes
Sealing gas used:Nitrogen
Clear aperture min magnification (mm):15.552
Clear aperture max magnification (mm):24
Eff. exit pupil diameter @ min. magnification ± 3 %:15.6
Eff. exit pupil diameter @ max. magnification ± 3 %:4.0
Maximum resolution in Arc. Second (min. Magnification):11
Maximum resolution in Arc. Second (max. Magnification):7
Range of Function temperature (Unit can still be operated):-25°C/+55°C
Storage temperature:-40C to +85C
Range of Dioptric compensation +/- dpt:2
Permissible backlash Dioptric Compensation:<0.25dpt
objective field of view @ min magnification (ft @100yds):109.2
objective field of view @ max magnification (ft@100yds):18.2
Change of impact point after change of magnification (MOA):1.5

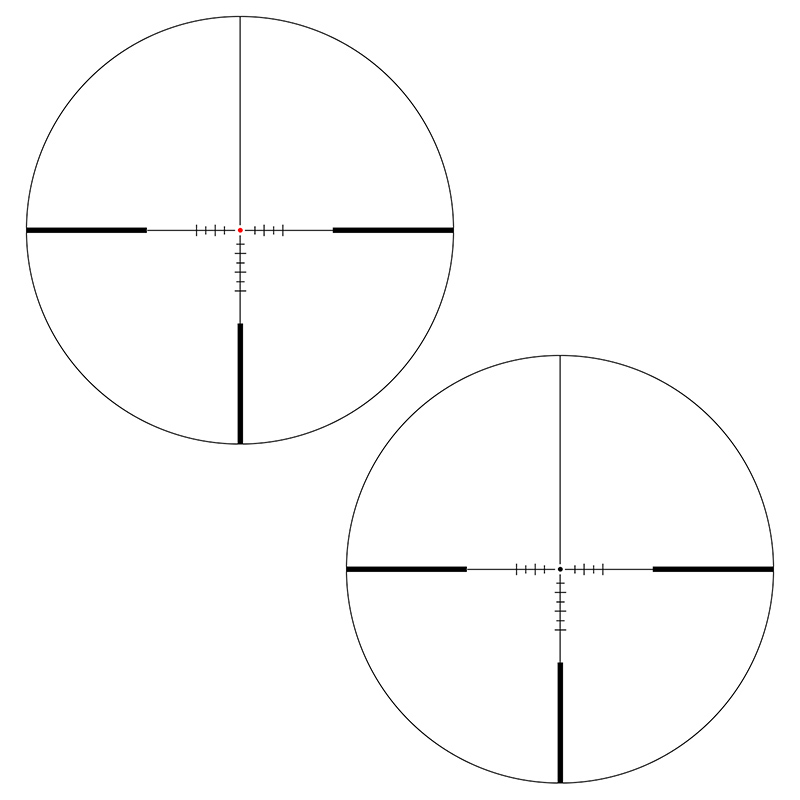

Parallax of Reticle (minute):3
Centering Reticle, full Field of View:± 7 %
Straightening of the Reticle:± 2 °
trackout:<2'
Changing Line of Sight by switching Magnification from min. to max :< 1.5 '
MOA per revolution tolerance:±0.75'
Coating:FMC
curvature of field of view:<1 dpt
distortion @ min / max magnification:<4%
straylight / Glare:< 2 %

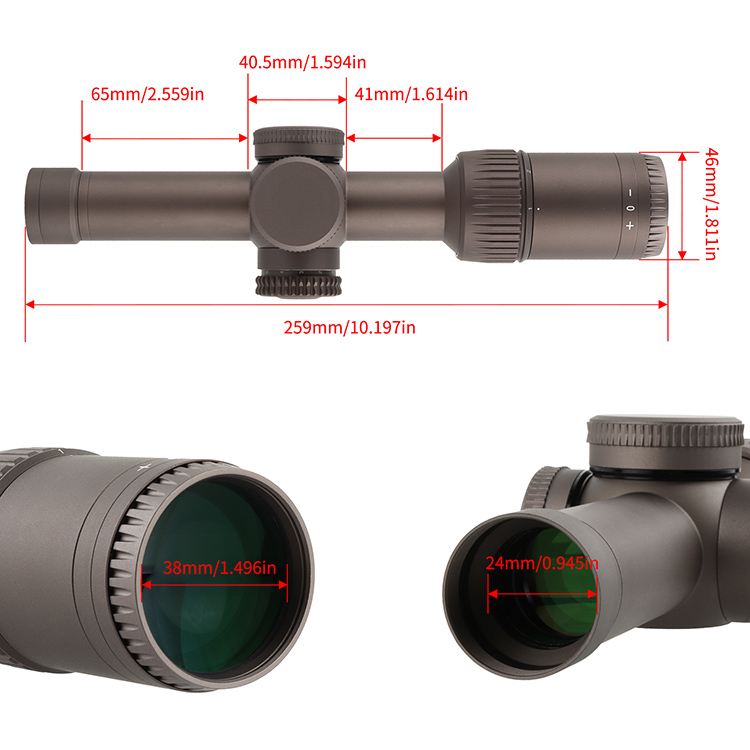

Optical length at infinity and zero diopter (mm):288
